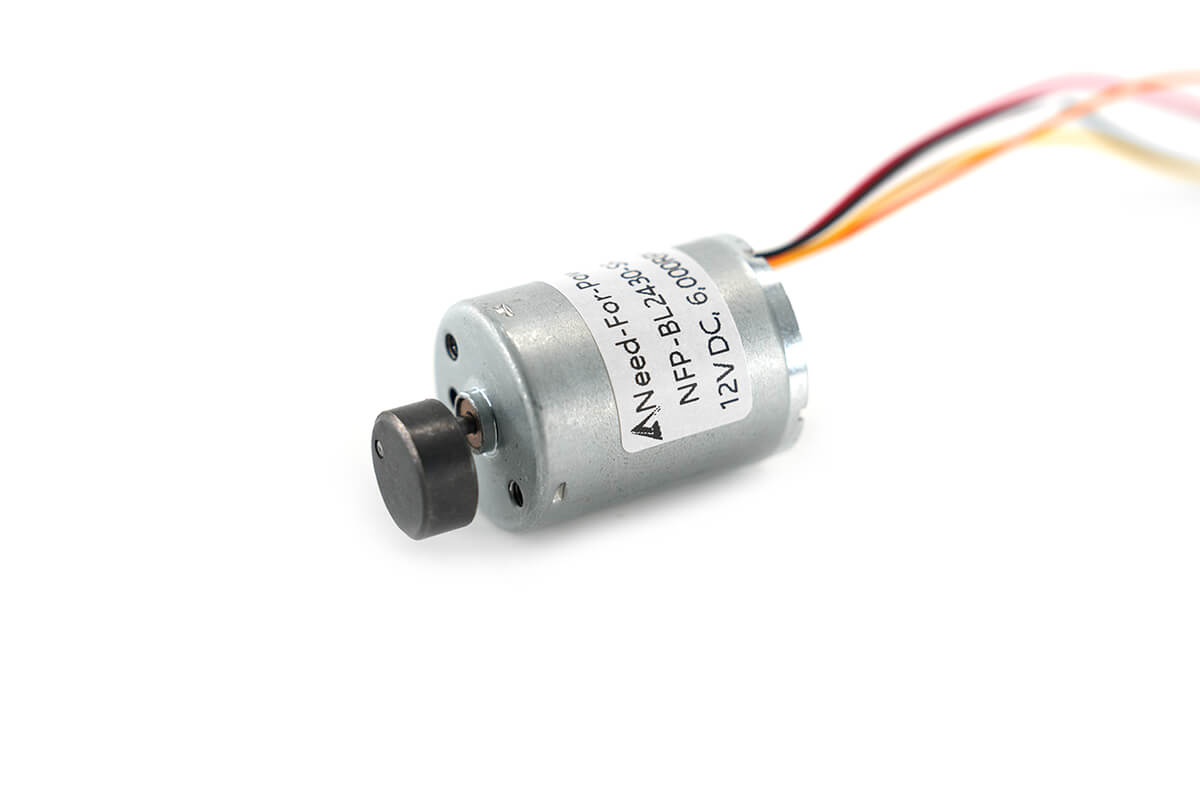

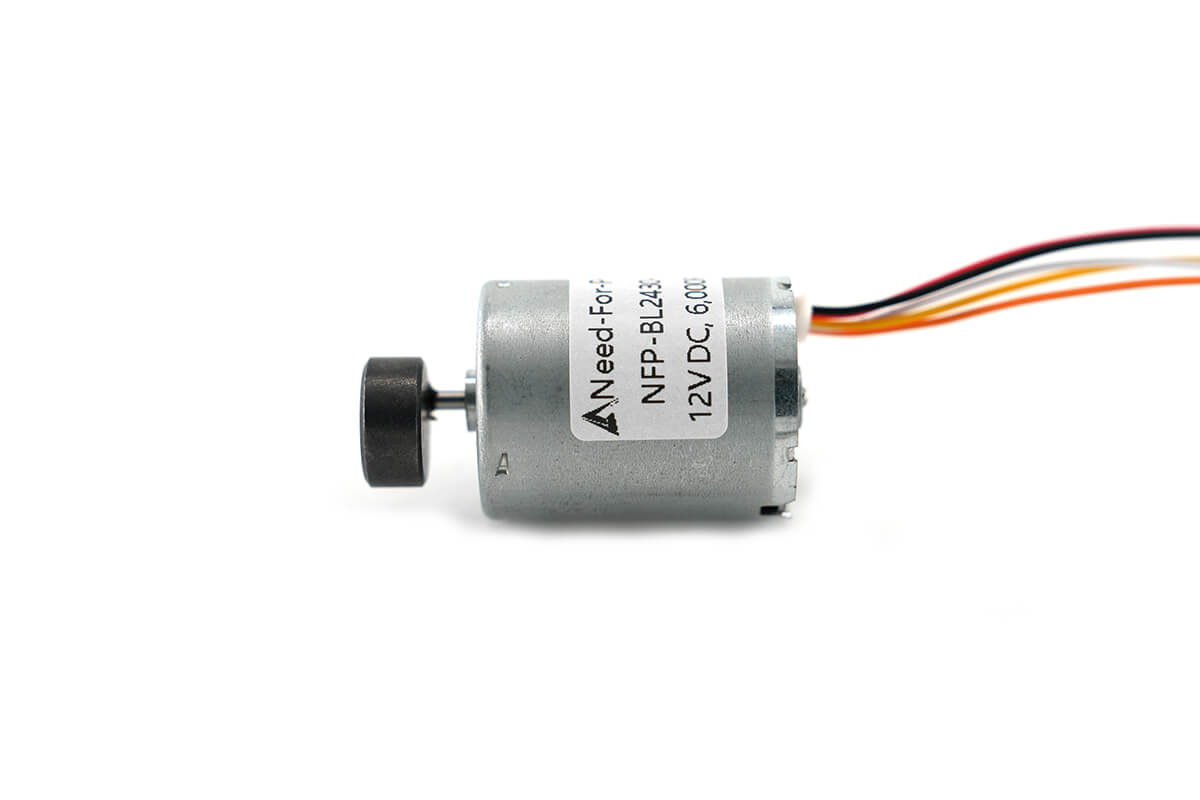

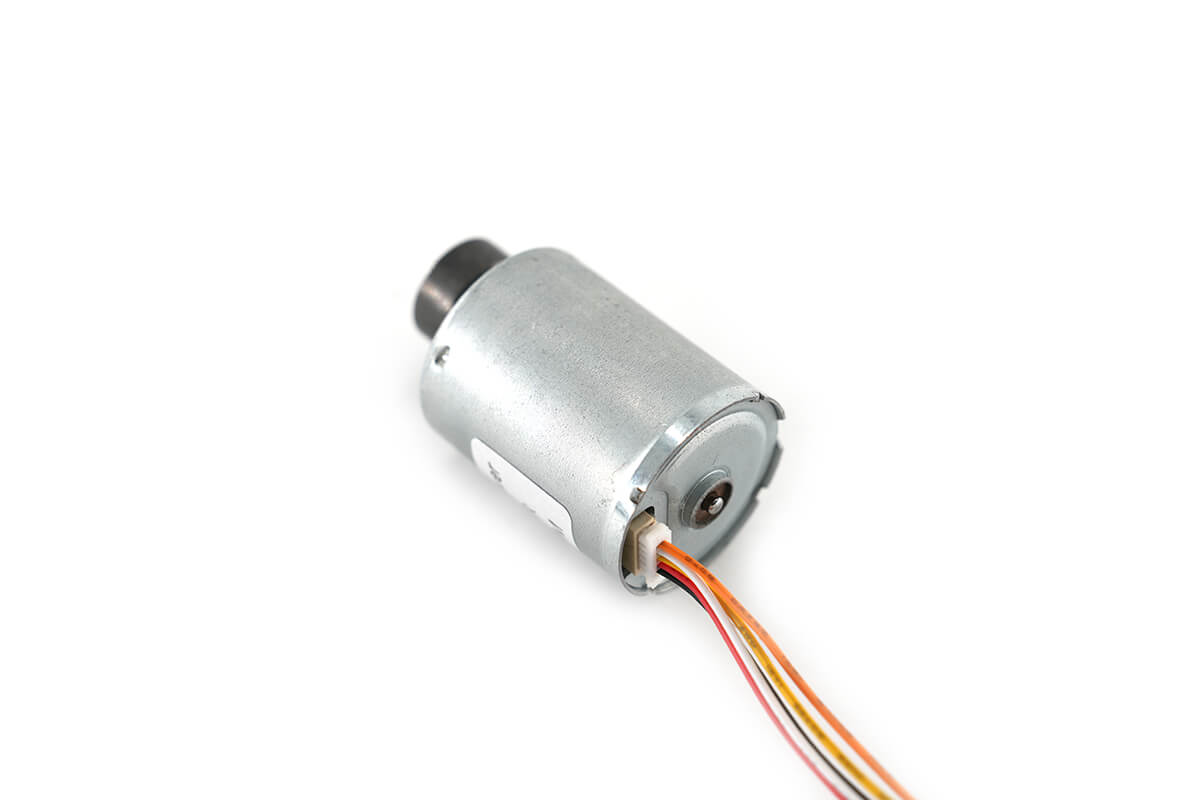

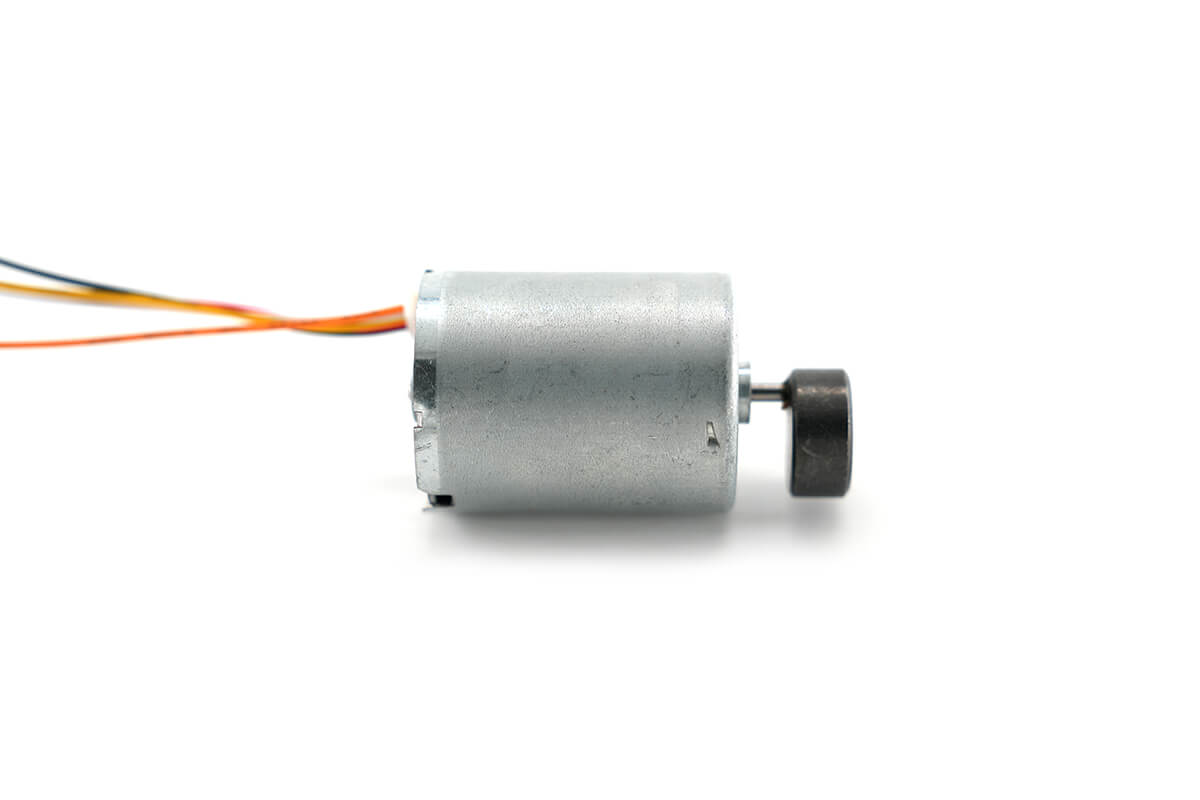

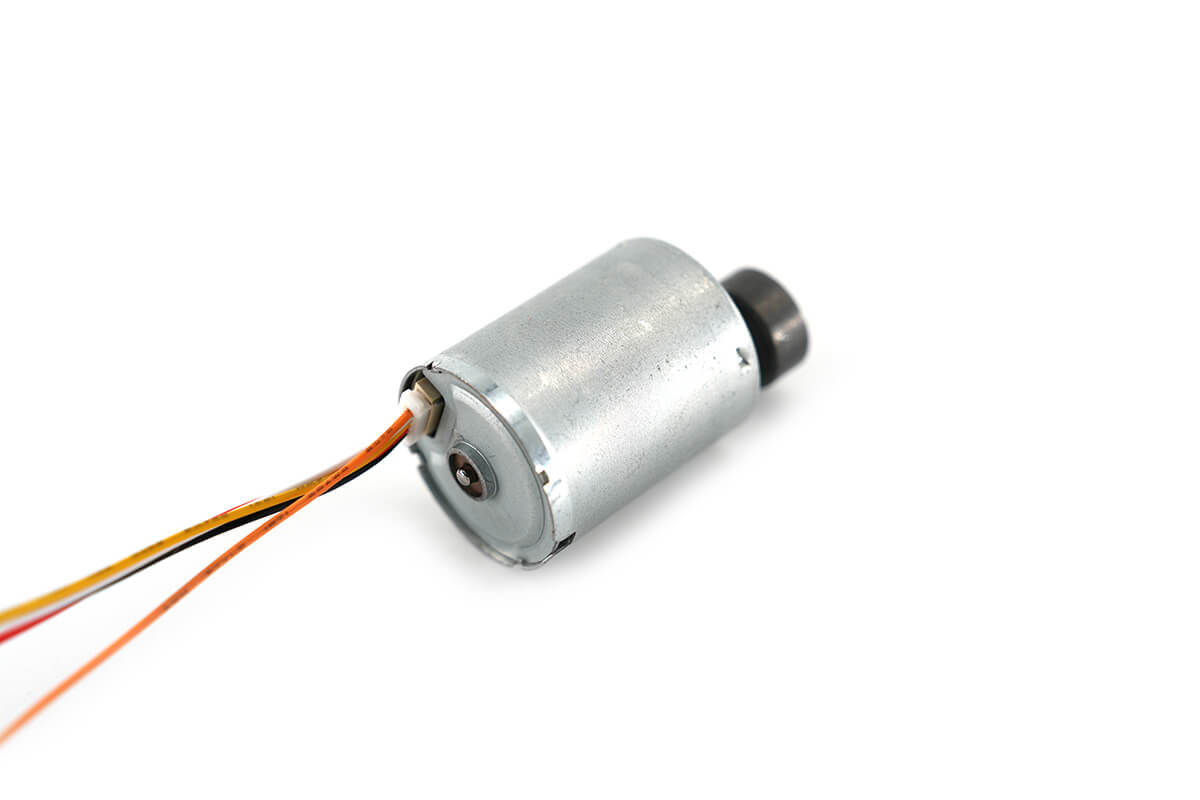

24mm Micro Brushless Vibration Motor – 30mm Type Model NFP-BL2430-SR

High-frequency Vibration BLDC Motor Parameters

Long lifetime small diameter brushless vibration motor, super big amplitude, low noise. Can work continuously for 10,000 hours. Speed ​​regulation is available.

Features:
☞ Round-shaped vibration head: Large swing head eccentric shaft: All made of high-quality metal materials, with the characteristics of corrosion resistance, not easy to rust, stable transmission ratio, not easy to heat and low noise.
☞ Pure copper coil: Six-wire winding 100% pure copper wire: Pure copper wire has high resistance accuracy, stable and reliable, faster speed, stronger torque with reducer, small temperature coefficient, and can withstand high temperature.
☞ High-quality magnetic tile: Good conductivity and long life, high work efficiency and low dynamic loss. Material: sintered NdFeB magnet three-layer treatment, good anti-rust ability, working temperature 80°-200°.
☞ Built-in brushless drive: Plug and play, stable output: stable and reliable performance, with brushless coil protection board inside, can be forward and reverse rotation, and also with brake, speed regulation and speed measurement wire output.

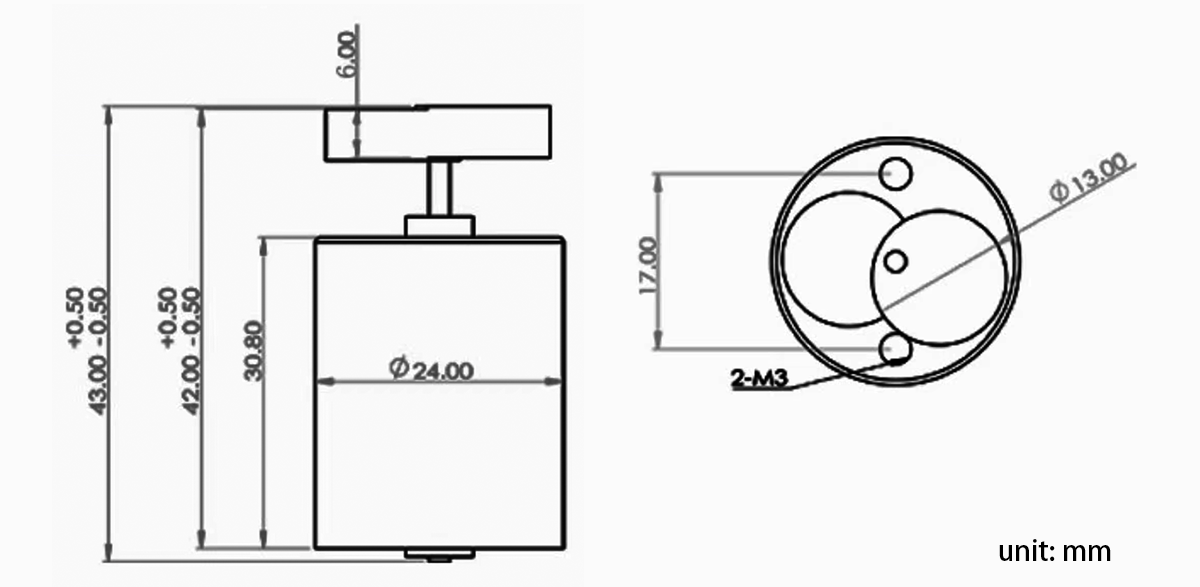

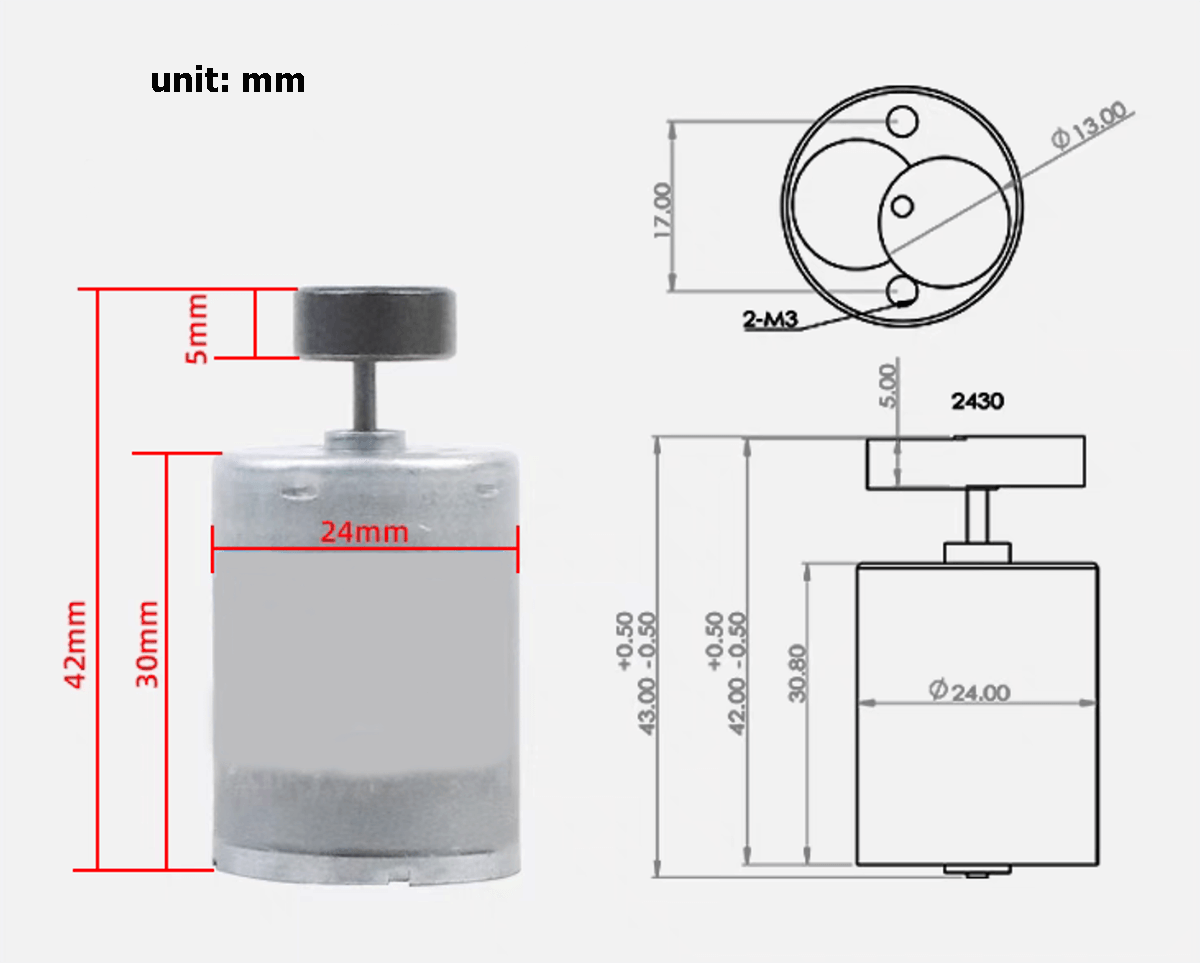

Φ24mm Brushless Vibration Motor Outline Drawing

Long Lifetime Brushless DC Motor Wiring Instruction

Forward / Reverse Rotation Control (without speed regulation):

2430 Five-wire Motor Wiring Instructions:
☞ Red Wire: motor power supply positive pole (+) [DC power supply is selected according to motor specifications]
☞ Black Wire: motor power supply negative pole (-)
☞ Yellow Wire: FG signal output (for external equipment to detect motor speed, the motor outputs 9 square wave pulses for one circle)
☞ White Wire: duty cycle speed regulation wire: pulse width speed regulation 15-25KHz [when not regulating speed, connect the white wire together with black wire to power supply negative pole (-), and the motor runs at full speed]
☞ Orange Wire: forward / reverse rotation [connect the orange wire together with black wire to negative pole (-), the rotation will be reversed], overcurrent protection is 0.8A, automatic protection starts when the instantaneous current exceeds 0.8A, stall protection, the motor will start again after being re-powered.

◆Note: The positive pole (+) and negative poles (-) of the motor cannot be connected in reverse!
The yellow wire is the speed signal wire and cannot be connected to the speed regulator!

Application: Beauty Instruments, Massagers, Vibrators
